KLS Cutting, Welding & Smart Machines

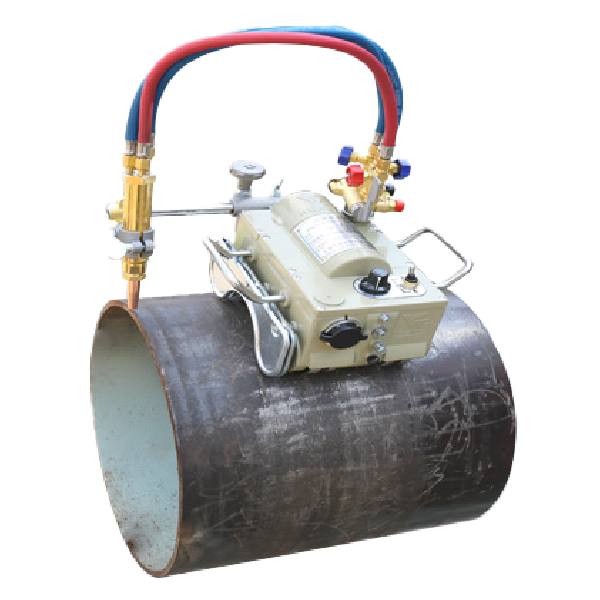

CG2-11 magnetic cutting machine is designed especially for cutting pipes.
Specification
|
Weight(body)
|
14.5KG
|
|
Machine dimension
|
305mm×310mm×180mm
|
|
Power source
|
220V 50HZ
|
|
Cutting speed
|
50-750mm/min
|
|
Cutting thickness
|
6-50mm
|
|
Bevel angle
|
0°-45°
|
|
Cutting range
|
￠＞108mm
|
|
Cutting accuracy
|
< 0.5mm
|
|
Adsorption affinity
|
＞50kg
|
|
Impulse of machine
|
＜0.5mm.
|
|
Motor
|
70SZ08 servo-motor, 6000r/min, 68W
|
* for pipe diameter over 600mm, additional steel belt is needed
