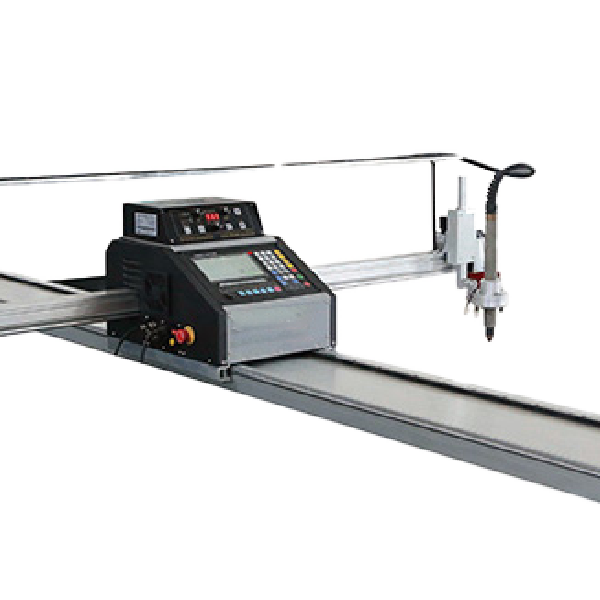

1530H PORTABLE CNC FLAME/PLASMA CUTTING MACHINE
1530H PORTABLE CNC FLAME/PLASMA CUTTING MACHINE
1530H is an easy-to-move, easy-to-install, and easy-to-use CNC cutting machine. It takes up only a little space. With optional flame torch or plasma torch, it befit all kinds of applications.
Features
- Easy-to-use operating system.
- Input CAD file directly to start working process.
- Multi-lingo Language package is installed.
- Autosave and auto-recovery in case of accidental outage.
- Automatic height adjustment device is also available for your choice.
- Status display
- Compatible with different Plasma products from domestic and foreign manufacturer.
Specification
|
Effective Cutting Range (X/Y) |
1500 x 3000mm |
|
Torch Height Control |
Motor Drive Torch Height Control / Plasma THC |
|
Input Power |
Single Phase AC 220V Approximately 220W |
|
Cutting Modes |
Plasma / Flame |
|
Moving Speed |
0 - 3000 mm/min (Maximum 4000mm/min) |
|
Torch Lifting Distance (Z) |
≤90mm |
|
Working Precision |
± 0.2 mm/meter |
|
Flame (Gas) Cutting Thickness |
Piercing Capacity: 5 - 60 mm / Edge Start: 5 -120mm |
|
Plasma Cutting Thickness |
Depends on the cutting capacity of the Plasma Generator |
* Cutting Table is separated with main machine and is optional for your choice.
