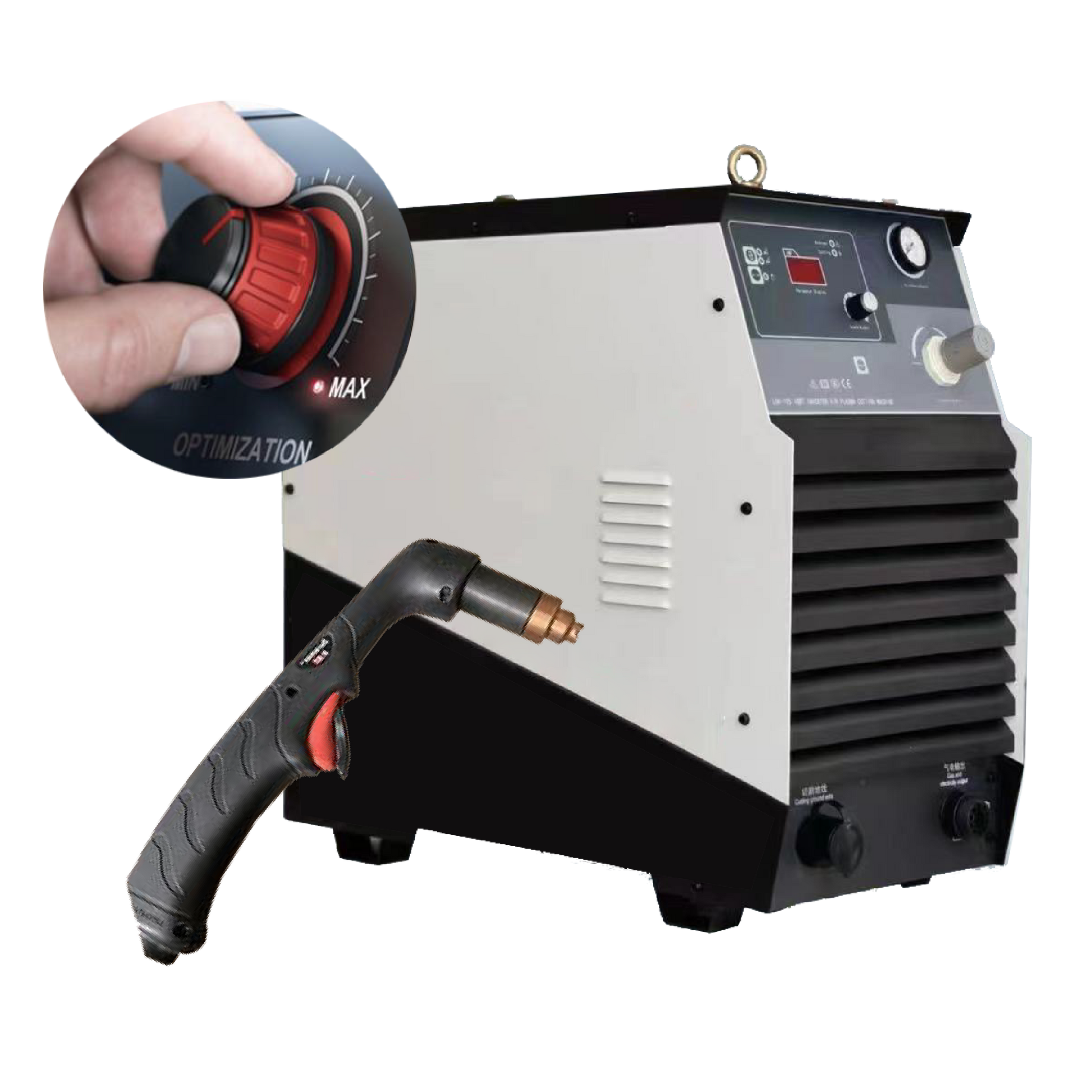

MAX-105AL LOW-FREQUENCY PLASMA

Professional-grade plasma system for cutting, gouging and marking metal up to 35mm.

Specification

Cutting Current	30~105A
Frequency	50~60Hz
Input Power	18.4Kva
Rated Output Current	105A
Rated output voltage	123V
Rated load duration	100%
No-load voltage	300VDC
Enter the wire cross-sectional area(m2)	≥6
Max. cutting thickness (carbon steel)-handheld	45mm
Plasma gas	pressurized air
Gas pressure	0.4~0.6Mpa
Torch cooling method	Air cooling
Arc strike	Low frequency
Insulation rating	F
Enclosure rating	IP21S
net weight	44kg
gross weight	50kg
Dimensions: LxWxH	680x300x585mm
Packing size: LxWxH	725x330x700mm
