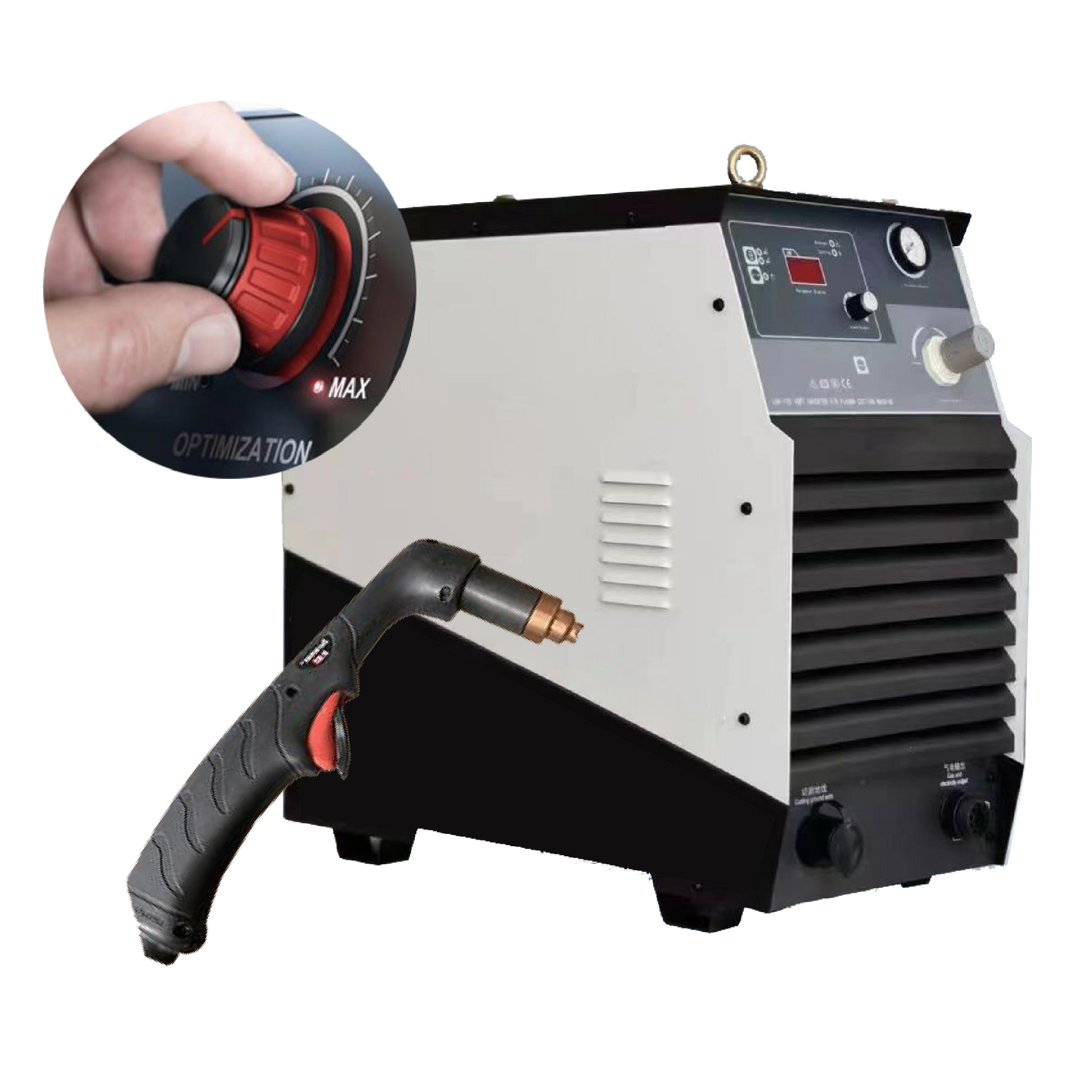

MAX-85AL LOW-FREQUENCY PLASMA
MAX-85AL LOW-FREQUENCY PLASMA
Professional-grade plasma system for cutting, gouging and marking metal up to 35mm.
Specification
|
Cutting Current |
30~85A |
|
Frequency |
50~60Hz |
|
Input Power |
15Kva |
|
Rated Output Current |
85A |
|
Rated output voltage |
105.2V |
|
Rated load duration |
100% |
|
No-load voltage |
308VDC |
|
Enter the wire cross-sectional area(m2) |
≥6 |
|
Max. cutting thickness (carbon steel)-handheld |
35mm |
|
Plasma gas |
pressurized air |
|
Gas pressure |
0.4~0.6Mpa |
|
Torch cooling method |
Air cooling |
|
Arc strike |
Low frequency |
|
Insulation rating |
F |
|
Enclosure rating |
IP21S |
|
net weight |
25kg |
|
gross weight |
35kg |
|
Dimensions: LxWxH |
500x210x400mm |
|
Packing size: LxWxH |
580x240x465mm |
